Cube Fold Hybrid 500 merlotred n reflex

E-Bike Folding Bike

Article no: 820210

Passendes Zubehör

Technical details

Frameset

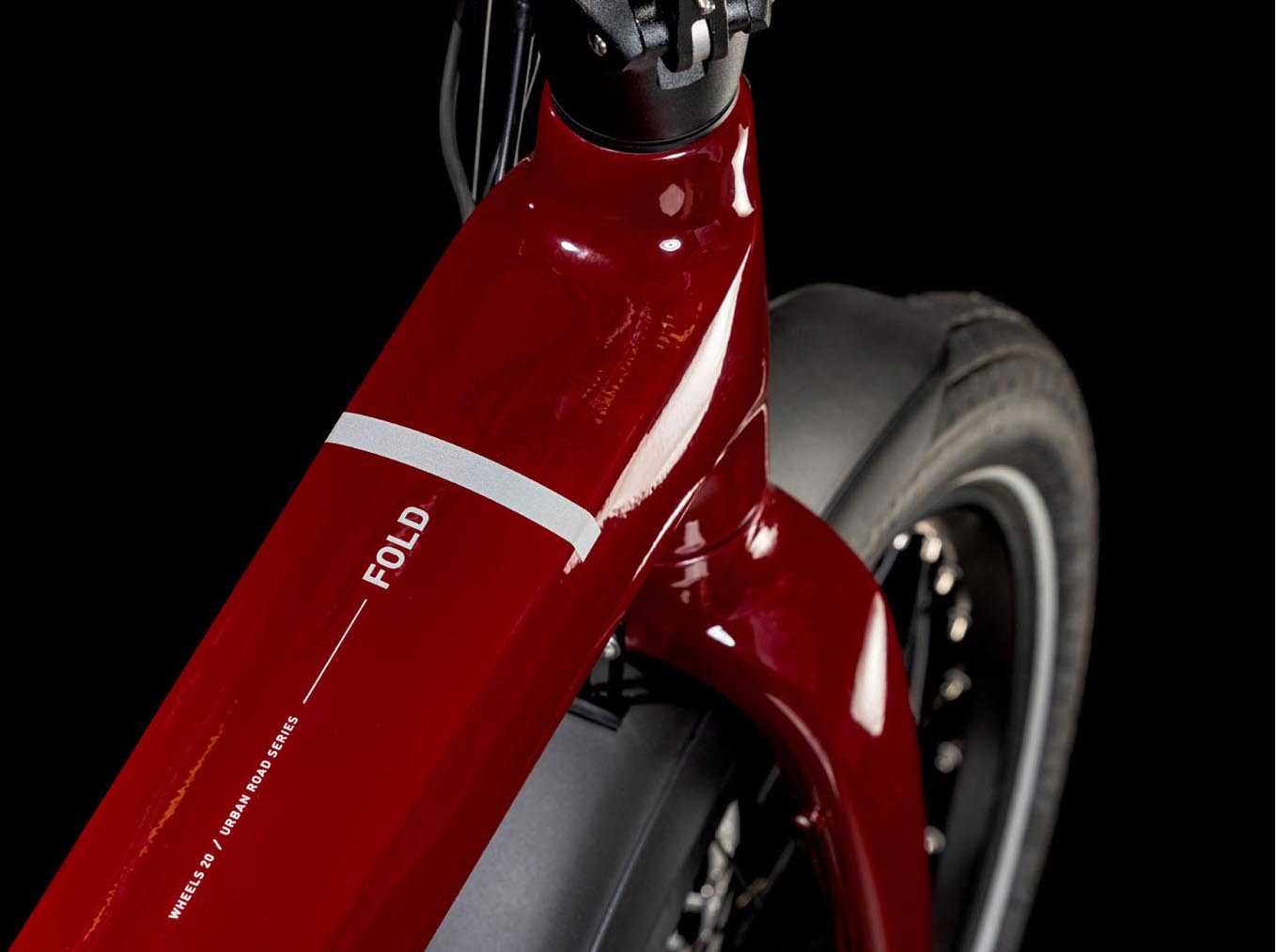

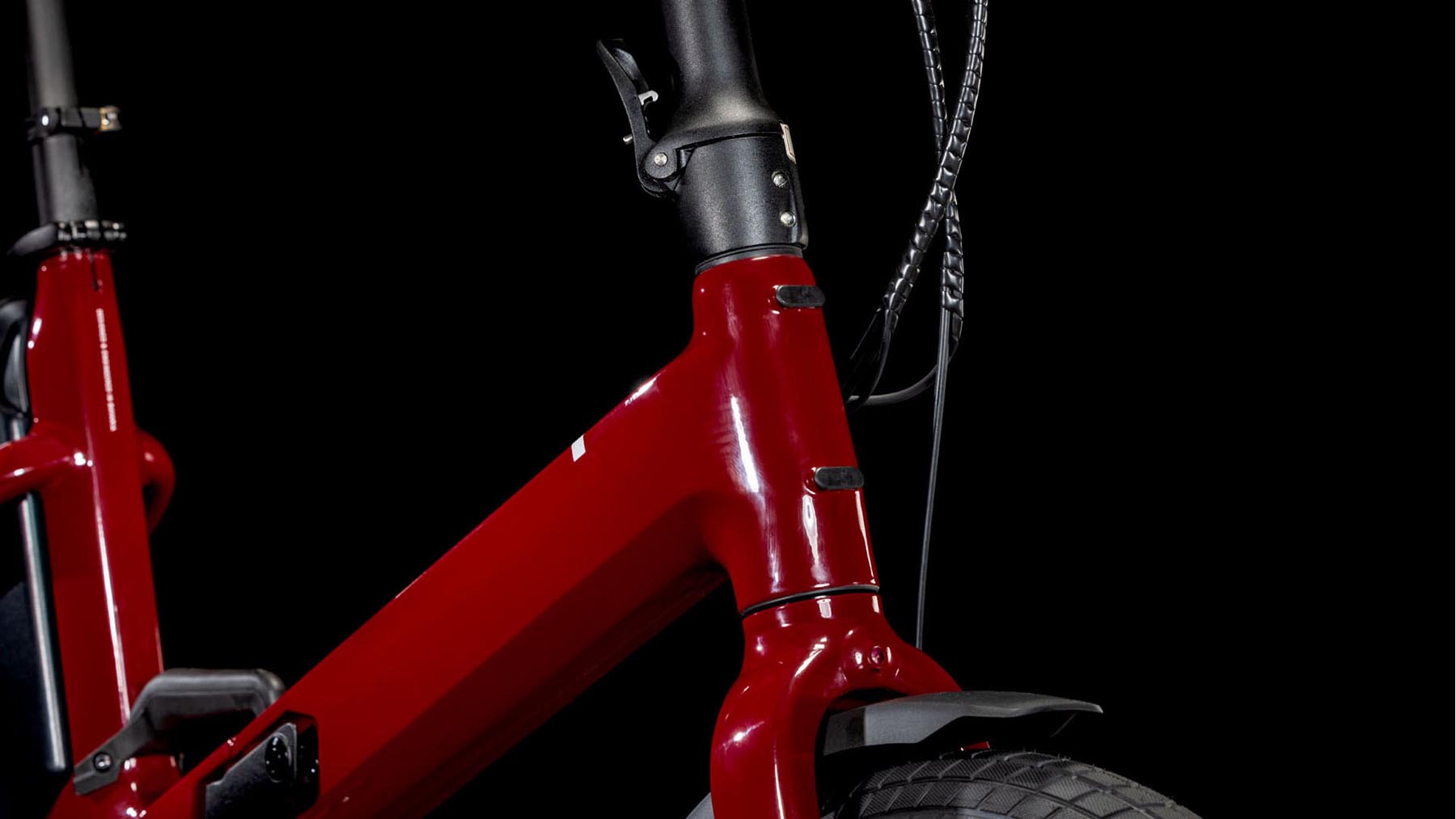

  • Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar
  • Size: One Size
  • Fork: Aluminium Rigid Fork, 20"
  • Headset: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Equipment
  • Stem: Cube Folding Stem, Adjustable Length, 25,4mm Clamp

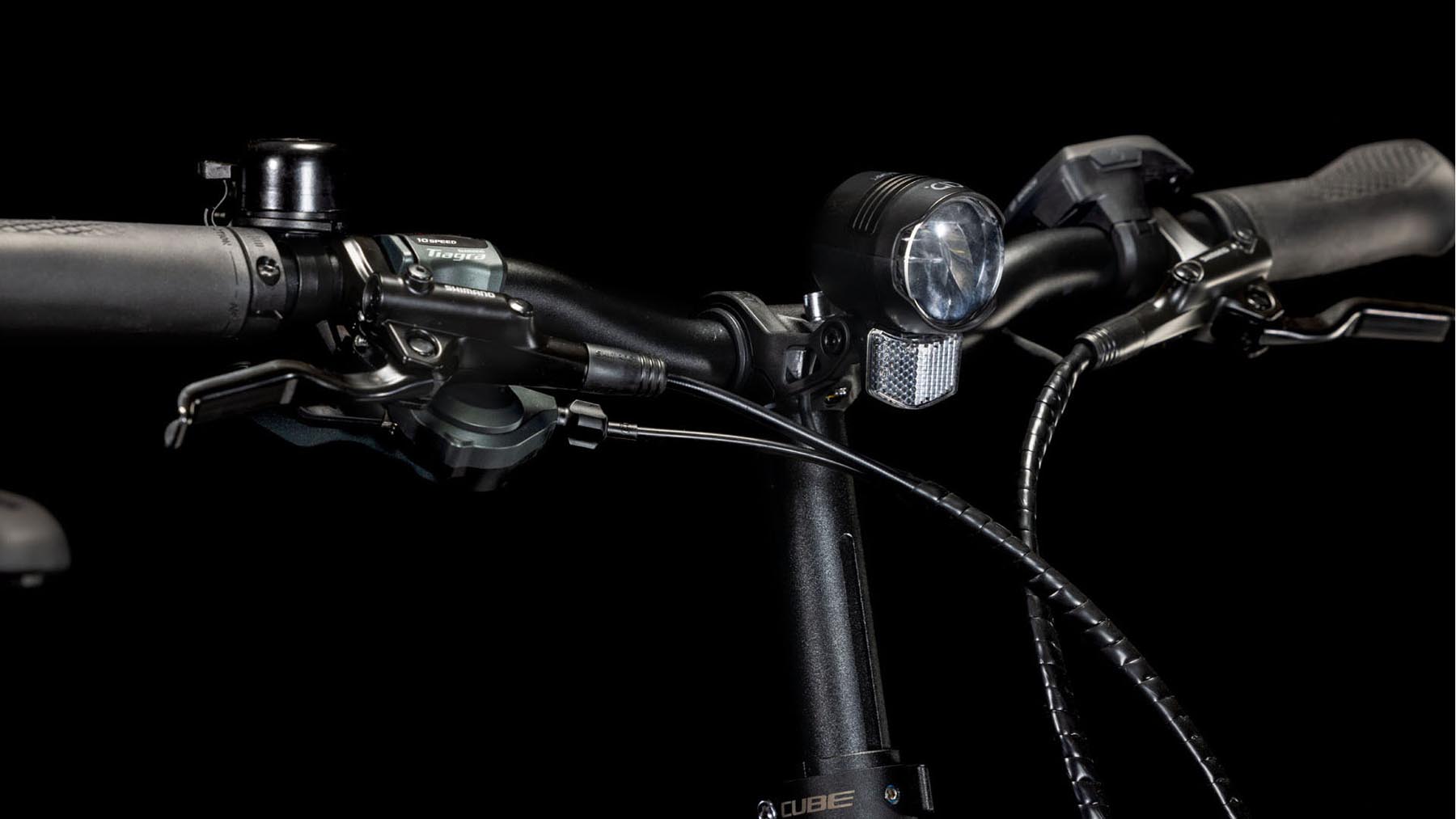

  • Handlebar: CUBE Comfort Trail Bar, 680mm, 25.4mm
  • Grips: ACID Travel Comfort
  • Pedals: Folding Pedal, Aluminium

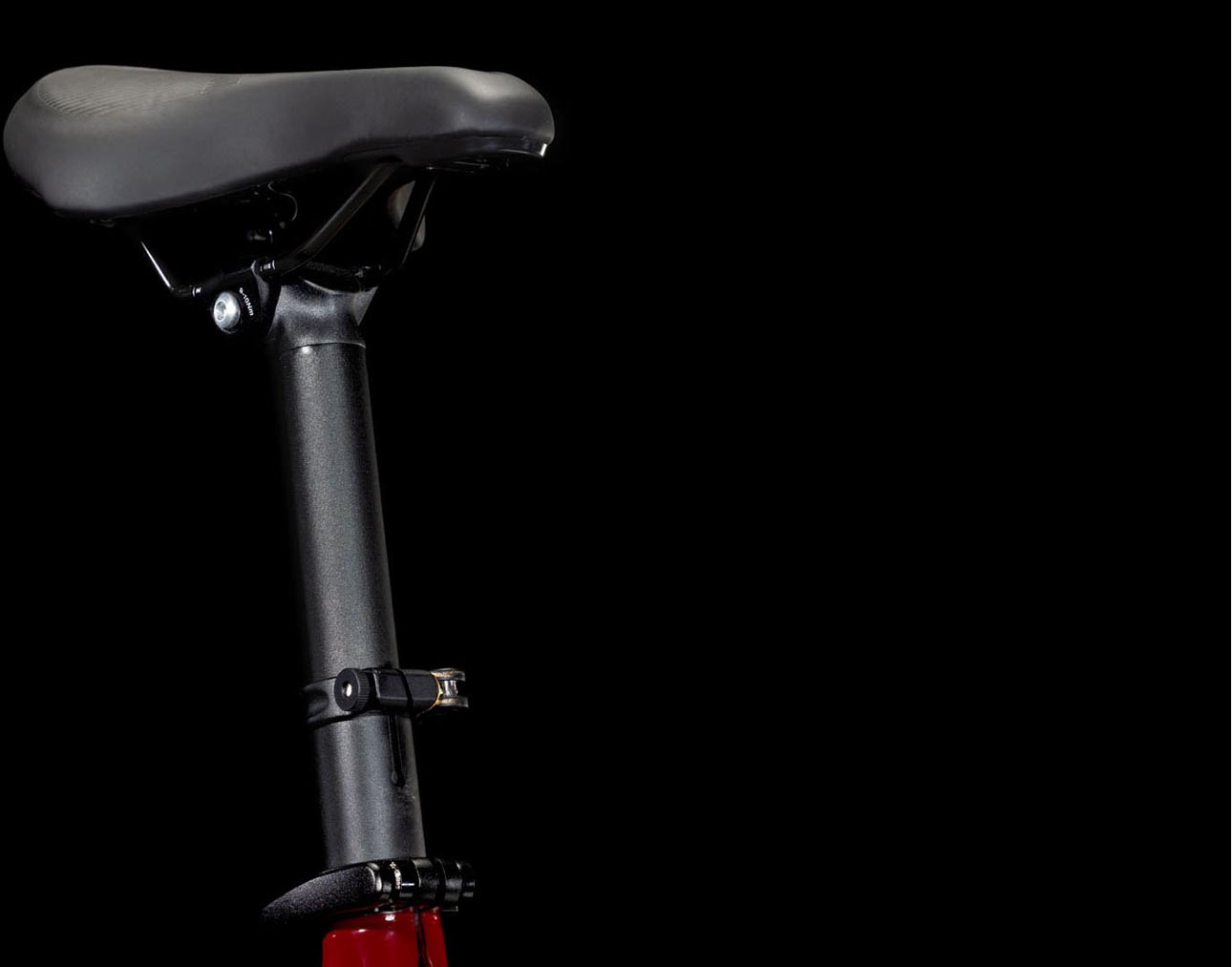

  • Saddle: Natural Fit Sequence
  • Seat Post: Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
  • Front Light: ACID PRO-E 60, 12V, DC
  • Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand: Two Leg Kickstand
  • Mudguards: ACID 75, BB-Mount
  • Bell: Easy Bell

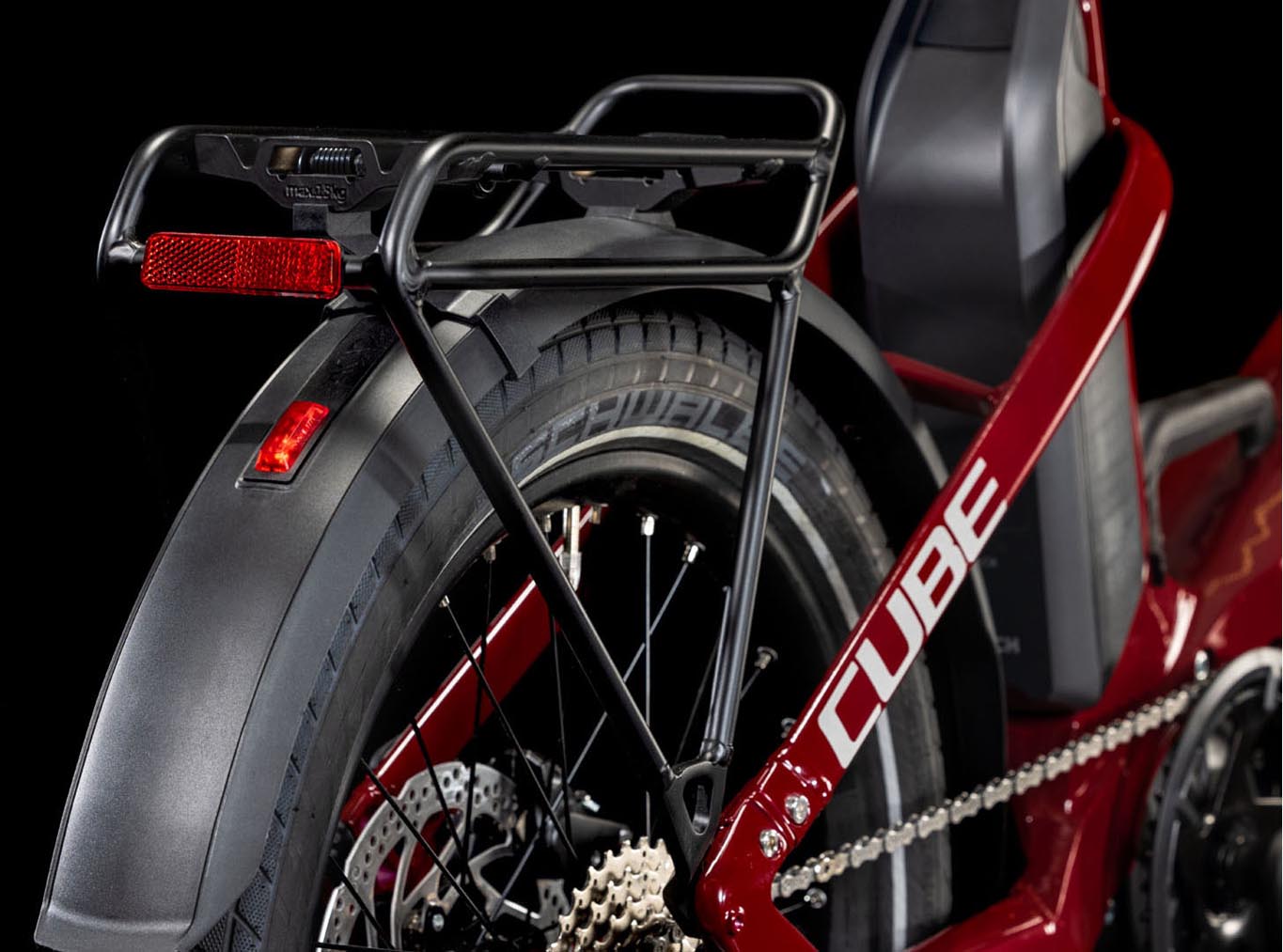

  • Rack: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
Drive
  • Rear Derailleur: Shimano Tiagra RD-4700GS, 10-Speed
  • Shifter: Shimano Tiagra SL-4700
  • Crankset: ACID Trekking Hybrid, 42T with Chainguard
  • Cassette: Shimano CS-HG500, 11-34T
  • Chain: KMC X10
Brakes
  • Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
Wheels
  • Rims: CUBE EX30, 32H, Disc, Tubeless Ready
  • Hub Front: Shimano HB-QC300, QR, Centerlock
  • Hub Rear: Shimano FH-QC300-HM, QR, Centerlock
  • Tires: Schwalbe Super Moto-X, Double Defense, 62-406
E-Bike System
  • Drive Unit: Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
  • Battery: Bosch PowerPack 500
  • Charger: Bosch 2A
  • Display: Bosch Purion
Additional Information
  • Color: merlotred´n´reflex
  • Weight (KG): 24,5 kg
  • Maximum weight allowed: 142 kg

Product description

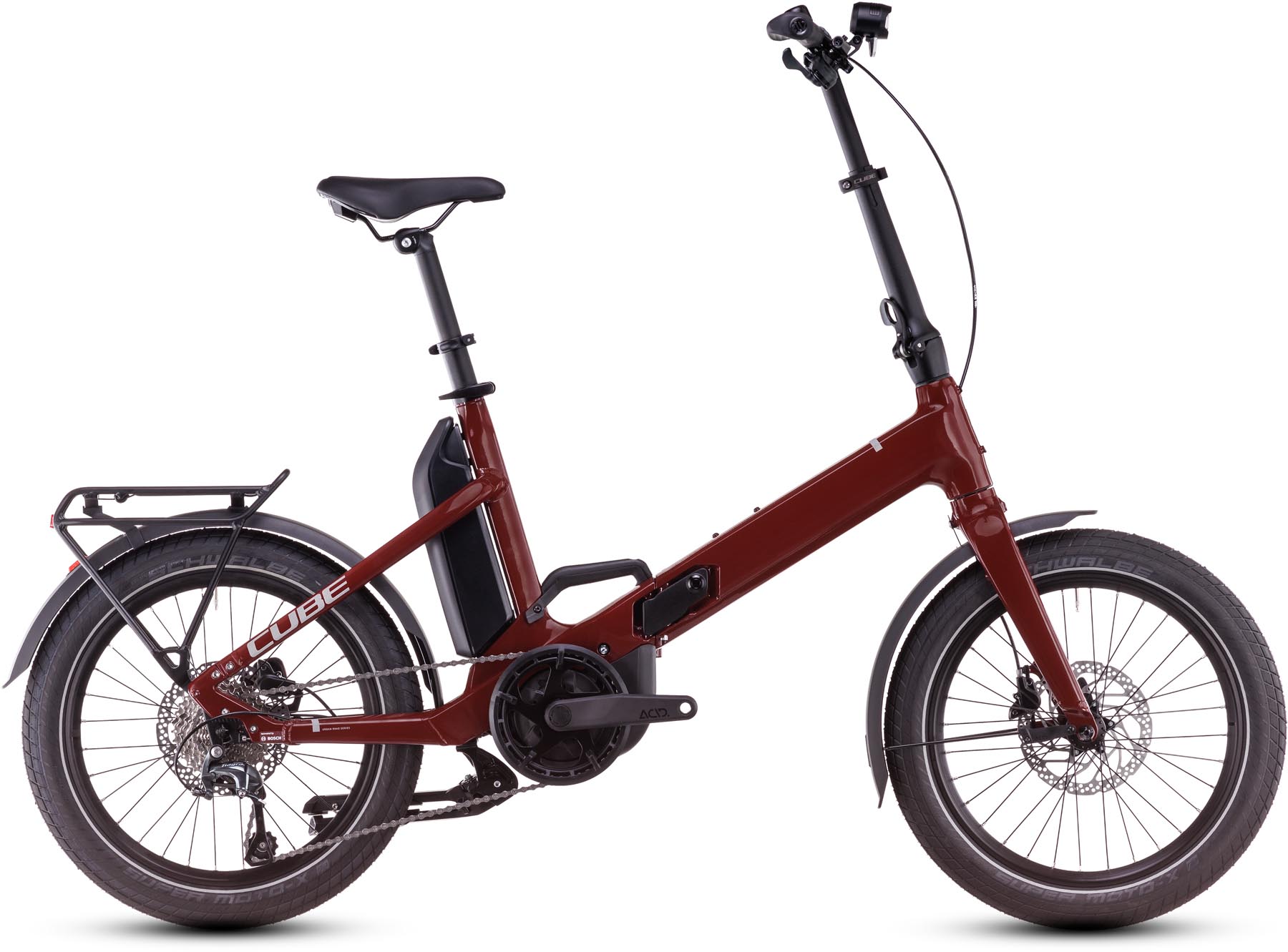

Cube Fold Hybrid 500 merlotred n reflex - E-Bike Folding Bike

Cube Fold Hybrid 500: Versatile folding e-bike with Bosch power

The Cube Fold Hybrid 500 in the elegant color merlotred'n'reflex is a modern folding e-bike that combines comfort, performance and flexibility. Thanks to the Bosch Active Plus motor and compact design, it is perfect for city rides and traveling.

Bosch Motor, display and battery for top performance

With the Bosch Active Plus motor and the Bosch Purion display, this e-bike offers a powerful and intuitive riding experience. The Bosch PowerPack 500 battery provides an impressive range, ideal for everyday use or longer tours.

  • Bosch Active Plus motor with 50Nm torque
  • Intuitive Bosch Purion display for easy operation
  • Powerful Bosch PowerPack 500 battery
  • Efficient 2A charger included
  • Perfect support up to 25 km/h

Aluminum fork and Shimano gears for comfort and control

The rigid aluminum fork and the precise Shimano Tiagra 10-speed drivetrain guarantee smooth riding characteristics and full control on any route. This is complemented by the powerful hydraulic disc brakes from Shimano, which are reliable even in wet conditions.

The well thought-out frame geometry and high-quality equipment make the Cube Fold Hybrid 500 particularly user-friendly. The integrated carrying handle and the practical folding function make transportation easier.

Robust frame and stylish color for everyday use and adventure

The aluminum frame impresses with its sophisticated design and high stability. The merlotred'n'reflex color gives the bike a classy Look look that perfectly matches its versatility. With a load capacity of up to 142 kg, this e-bike is suitable for a wide range of requirements.

[deeplNEW]

Who is the Fold Hybrid 500 suitable for?

Battery capacity: 500Wh
Bike Type: E-Bike, Folding bike
Display Type: Bosch Purion
E-Bike Engine: Bosch Active Plus
Fahrradpedale: Mit Pedale
Model year: 2025
Target Group: Men, Unisex, Women

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
