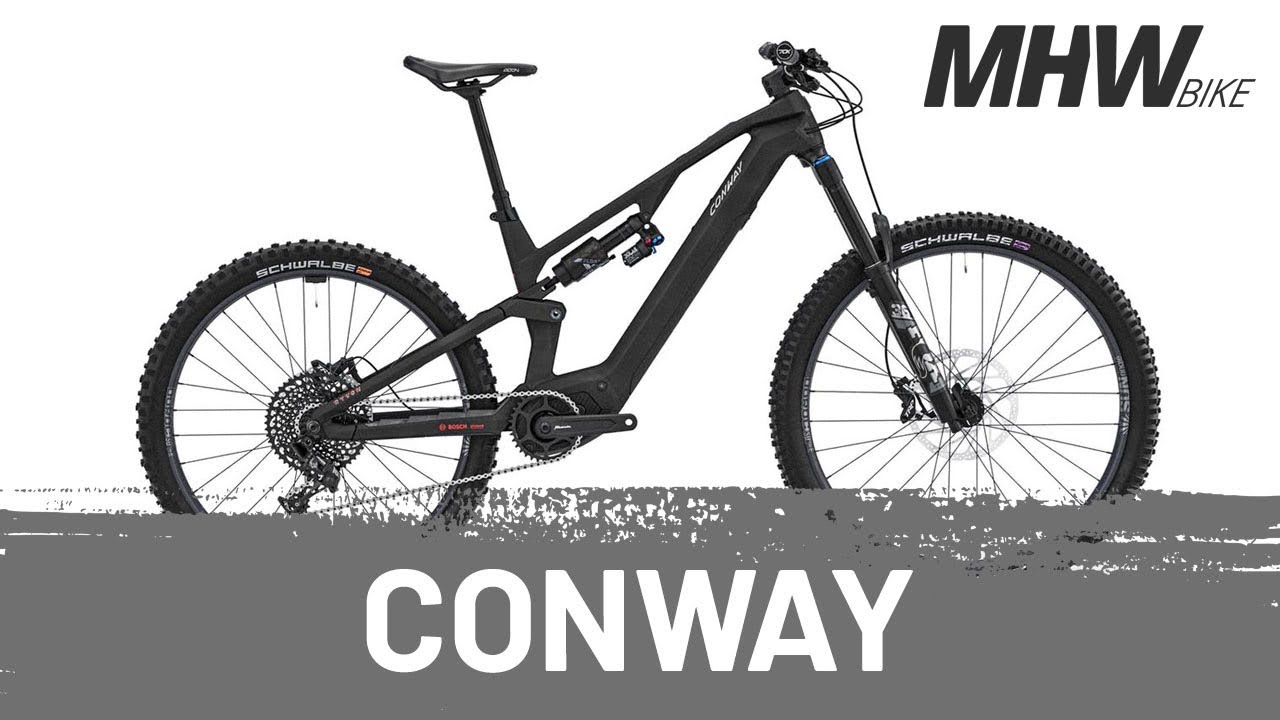

Conway Ryvon LT 4.0 400Wh carbon / silver

E-Bike Fully Mountainbike

Article no: 02830075

Technical details

Frameset
  • Frame: Intube Bosch, Gen. 4, BES3, Carbon, Fullsuspension, 40 cm
  • Fork: FOX RACING SHOX Federgabel "36 Float Rhythm E", 29", 170 mm Federweg, tapered, Post Mount, Boost, Steckachse, 44 mm Offset, Grip, schwarz
  • Headset: ACROS ZS56/28,6/OD62 / ZS56/40, 1 1/8" - 1,5" tapered, 150° Blocklock
  • Shock: FOX "Float X2 Performance", 230 mm x 65 mm
Drive
  • Crankset: MIRANDA "Omega", 160 mm, für Bosch Gen. 4, ISIS, Q: 8, schwarz
  • Chainring: SRAM "X-Sync 2 Eagle", 34 Zähne, Boost, für Bosch Gen. 4, Direct Mount
  • Derailleur hanger: SRAM "UDH", für Steckachse, 1 mm Gewindesteigung
  • Shifter: SRAM "NX Eagle", Single Click, 12-fach
  • Rear Derailleur: SRAM "NX Eagle"
  • Cassette: SRAM "PG-1230", 12-fach Eagle, 11-50 Zähne
  • Chain: SRAM "SX Eagle"
Brakes
  • Brake (front): TRP Scheibenbremse "SLATE EVO" HD-M807, hydraulisch, 4 Kolben, Post Mount, für 2,3 mm Bremsscheiben
  • Brake (rear): TRP Scheibenbremse "SLATE EVO" HD-M807, hydraulisch, 4 Kolben, für 2,3 mm Bremsscheiben
  • Brake Discs : Front: TRP "RS01E", Ø 220 mm, 6-Loch, 2,3 mm Stärke / Rear: TRP "RS01E", Ø 203 mm, 6-Loch, 2,3 mm Stärke
E-Bike System
  • Drive Unit: BOSCH "Performance Line SX" Gen. 4, BES3
  • Battery: BOSCH "CompactTube 400", 400 Wh, BES3, horizontal
  • Charger: BOSCH 4 A, BES3
  • Remote System: BOSCH "BRC3300", Mini Remote
  • E-Drive System: Tretkraftmessung im Motor + Geschwindigkeitssensor
Wheels
  • Wheelset: Front: SUNringlé "Düroc SD37 Comp", 15 x 110 mm, 6-Loch / Rear: SUNringlé "Düroc SD37 Comp", 12 x 148 mm, 6-Loch, 12-fach HG
  • Tire Front: SCHWALBE "Magic Mary" Evolution Line, 62-622, Super Trail, Addix Ultra Soft, TLE, faltbar, 67 TPI, E-50
  • Tire Rear: SCHWALBE "Big Betty" Evolution Line, 62-584, Super Gravity, Addix Soft, TLE, faltbar, 67 TPI, E-50
Equipment
  • Handlebar: LEVELNINE "Team Riser", 760 mm, Ø 31,8 mm, Backsweep 9°, Upsweep 5°, Rise 10 mm, schwarz
  • Stem: LEVELNINE "Team A-Head", 1 1/8", 31,8 mm Lenkerklemmung, 40 mm lang, schwarz
  • Grips: SQLAB "70X", 135 mm, schwarz
  • Saddle: FIZIK "Terra Aidon X1", Unisex, Typ 2, Regular, schwarz
  • Seat Post: LIMOTEC Variosattelstütze "A1L", Ø 31,6 mm, 445 mm lang, 150 mm Verstellbereich, 0 mm Offset, schwarz sandgestrahlt

Product description

Conway Ryvon LT 4.0 400Wh carbon / silver - E-Bike Fully Mountainbike

Who is the Ryvon LT 4.0 400Wh suitable for?

For the competition-oriented driver who makes no compromises. Where others are saving money, these bikes are using their full potential. If you used to have to put together your own fully complicated bike, these BIkes will deliver the complete package perfectly matched to your home. Manoeuvrable, light and flexible in use - bikes for every occasion, the winner's podium, the Alpenpass and all those who look forward to hairpin bends!

The advantages of 27.5 inch tires

27.5 inch wheels are the logical addition to the large 29 inch wheels and the optimum compromise for all smaller riders and trail fanatics. The combination of smoothness and manoeuvrability meets every wish of a biker. More agile than the 29 inch wheels and therefore the optimal choice for off-road driving and hairpin bends that leave you with little reaction time. This category offers the best choice especially for those changing from 26 inch wheels. 27.5 inch combines the best of two worlds and creates bikes that are not restricted in their use. Whether Fully or Hardtail - 27.5 inch is the golden mean and the perfect tyre size for all who want to use their mountain bike according to its purpose.

The advantages of 29 inch tires

29 inch is THE trend of the last few years, which was able to assert itself completely. Initially viewed critically by mountain bike purists and equipped with some teething troubles, the bike industry has recognized the trend and made it the new standard through continuous improvements. The advantage of the 29" tyres is the enormous running smoothness, which brings great advantages and saves power on long tours as well as uphill and downhill. Obstacles are easier to overcome due to the larger circumference of the wheels, and a greater distance is covered by turning the bottom bracket. By improvements and adjustments in the frame construction and the component selection, initial problems with the agility in the Trail and the optics of smaller frames were optimally balanced. Whether fully or hardtail, a 29 will take you far away.

Battery capacity: 400Wh
Bike Type: E-Bike, Mountainbike Fully
E-Bike Engine: Bosch Performance Line SX
Fahrradpedale: Ohne Pedale
Material: Carbon
Model year: 2025
Target Group: Men, Unisex, Women
Wheel Size: 27,5 inch, 29 inch

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
