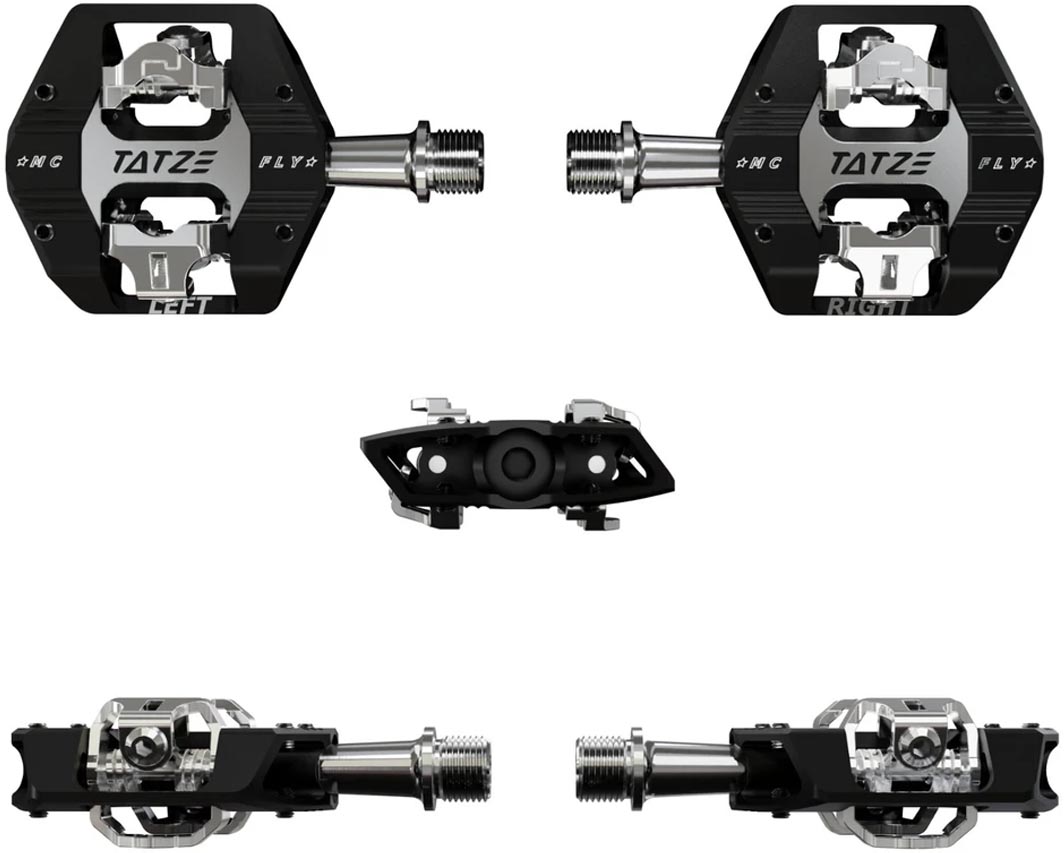

TATZE MC-FLY pedals with Cr-Mo axle

Tatze

Article no: Tatze-Mc-Fly-Cr-Mo

Technical details

Farbe Schwarz
Gewicht 354g
Größe 67mm x 56mm x 13-17mm (B x L x H)
Material Alu 6061-T6, eloxiert
Features
  • SPD-Kompartibel
  • Auslösehärte 4-12Nm einstellbar
  • Float 5°
  • Auslösewinkel 12°
  • Einstellbarer Anpressdruck zwischen Schuh und Pedal über 4 optionale PINS
  • Kompaktes Pedal mit großer Auflagefläche
  • Vergütete und beschichtete Stahlachse
  • Nadellager und Rillenkugellager, beide 2-fach gedichtet

Product description

TATZE MC-FLY pedals with Cr-Mo axle

The TWO-FACE with Cr-Mo axle is an extremely powerful flat pedal and an efficient click pedal at the same time. 14 PIN´s with targeted elevation provide enormous grip, but also on the click side a particularly rich connection between pedal and shoe is created with 6 height-adjustable PIN´s.

For optimised ground clearance, the flat side is turned 2.5° to the click side, which increases ground clearance at the decisive points by 5 mm.

A defined page selection is especially important for a combination pedal. With TWO-FACE, the side remains after relief by targeted pedal resistance, so that the same side / function is available again when the pedal is pressed again.

The TWO-FACE is extremely resistant due to the selection of the highest quality materials and manufacturing processes.

[deepl]
Pedal type: with click system
