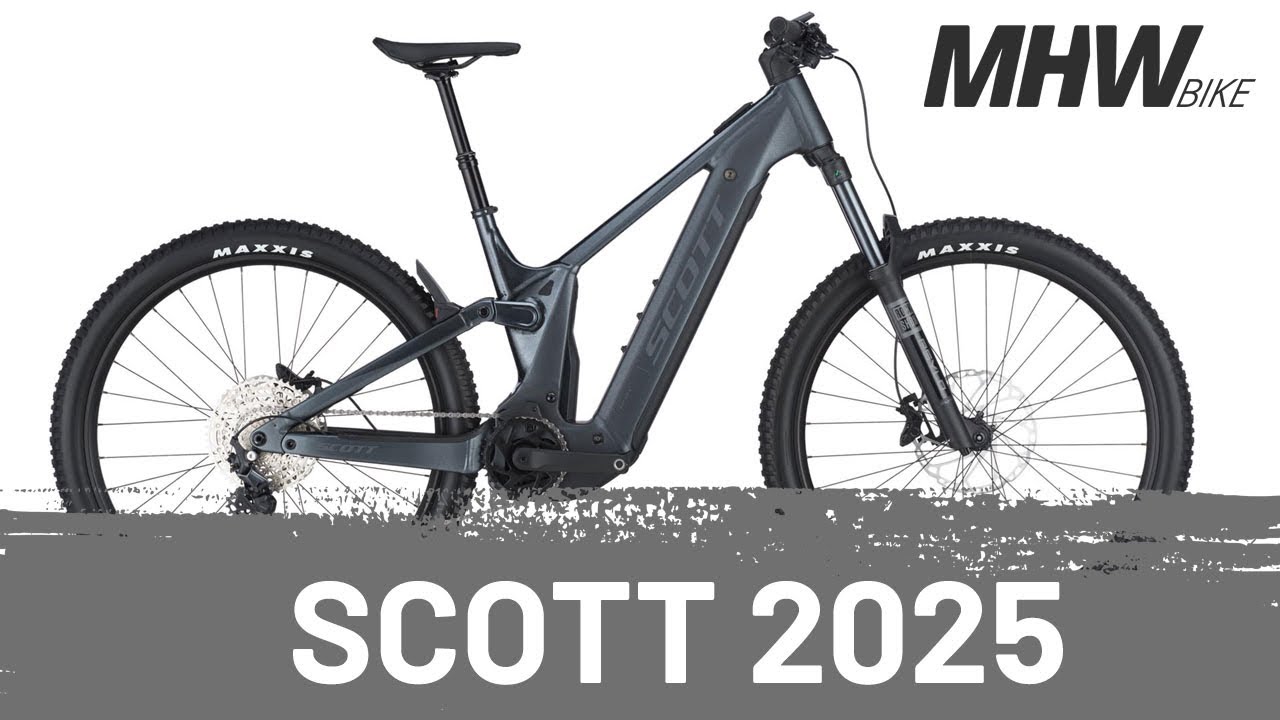

Scott Patron 920 granite black

E-Bike Fully Mountainbike

Article no: 4233636922012

Technical details

Frameset
  • Frame: Alloy Frame, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline, Bosch PowerMore Ready
  • Fork: RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle, 44mm offset / tapered steerer / 150mm travel
  • Shock: X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 150-100-Lockout / T185X55mm
  • Headset: Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6? head angle adjustment, ZS56/28.6 ? ZS56/40 MTB
Drive
  • Rear Derailleur: Shimano Deore RD-M6100 SGS, Shadow Plus / 12 Speed
  • Shifter: Shimano Deore SL-M6100-IR / Rapidfire Plus
  • Number of gears: 12
  • Crankset: FSA Alloy
  • Chain: Shimano CN-M6100
  • Cassette: Shimano CS-M6100 / 10-51
Brakes
  • Brake (front): Shimano MT520 4 Piston Disc
  • Brake (rear): Shimano MT520 4 Piston Disc
  • Brake Discs : Front: Shimano SM-RT64 CL 220mm || Rear: Shimano SM-RT64 CL 203mm
Wheels
  • Front rim: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
  • Rim rear: Syncros MD30 / 32H / 30mm / Pin Joint, Tubeless ready
  • Tire Front: Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra
  • Tire Rear: Maxxis Forekaster 29x2.6", 120TPI Foldable Bead, EXO / TR Tubeless ready, 3C Maxx Terra
  • Hub Front: Formula CL-811 / 15x110mm
  • Hub Rear: Formula ECT-148M / Boost 148x12mm
  • Spokes: Stainless Black
Equipment
  • Handlebar: Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8? / 780mm
  • Stem: Syncros AM 2.0, Syncros Cable Integration System, 4? rise / 6061 Alloy / 31.8mm / 1 1/8"
  • Grips: Syncros Endurance lock-on grips
  • Handlebar Remote: SCOTT TracLoc 2 Technology, Suspension & Dropper Remote, 3 modes
  • Saddle: Syncros Tofino-E 2.5 Regular
  • Seat Post: Syncros Duncan Dropper Post 2.5, 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
  • Front Light: Front Light Cable pre-installed
  • Rear Light: Syncros integrated rear fender light
E-Bike System
  • Drive Unit: Bosch Performance CX, EU: 25kmh / INT: 20mph
  • Battery: PowerTube 800Wh
  • Display: Bosch System Controller, Mini Remote & Intuvia 100
  • Charger: 4A Charger
Additional Information
  • Weight (KG): 25,8
  • Maximum weight allowed: 128

Product description

Scott Patron 920 granite black - E-Bike Fully Mountainbike

Who is the Patron 920 suitable for?

For the competition-oriented driver who makes no compromises. Where others are saving money, these bikes are using their full potential. If you used to have to put together your own fully complicated bike, these BIkes will deliver the complete package perfectly matched to your home. Manoeuvrable, light and flexible in use - bikes for every occasion, the winner's podium, the Alpenpass and all those who look forward to hairpin bends!

The advantages of 29 inch tires

29 inch is THE trend of the last few years, which was able to assert itself completely. Initially viewed critically by mountain bike purists and equipped with some teething troubles, the bike industry has recognized the trend and made it the new standard through continuous improvements. The advantage of the 29" tyres is the enormous running smoothness, which brings great advantages and saves power on long tours as well as uphill and downhill. Obstacles are easier to overcome due to the larger circumference of the wheels, and a greater distance is covered by turning the bottom bracket. By improvements and adjustments in the frame construction and the component selection, initial problems with the agility in the Trail and the optics of smaller frames were optimally balanced. Whether fully or hardtail, a 29 will take you far away.

Battery capacity: 800Wh
Bike Type: E-Bike, Mountainbike Fully
Display Type: Bosch Intuvia 100
E-Bike Engine: Bosch Performance CX
Fahrradpedale: Ohne Pedale
Material: Carbon
Model year: 2025
Target Group: Men, Unisex, Women
Wheel Size: 29 inch

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
