Technical details
- Gesamtlänge: 515 mm
- Hintere Verlängerung: 330 mm
- Vordere Verlängerung: 185 mm
- Breite: 90 mm
- Material: Recyceltes Polypropylen
- Gewicht: 120 g
- Lieferumfang: Schutzblech, 4x Kabelbinder
Mudhugger EVO Kompatibilitätschart
Diese Übersicht soll helfen das richtige EVO Schutzblech, passend zur Federgabel zu finden. Einige Gabelmodelle erfordern für die Montage zusätzliche Teile oder geringfügige Modifikationen am Schutzblech, damit dieses passt.
Bitte beachten:
Minimale Gabelvorbiegung (Offset) für alle EVO Schutzbleche: 44 mm
❌ - bedeutet nicht kompatibel.
✅ - bedeutet kompatibel, bitte zusätzliche Hinweise beachten.
✅* - bedeutet, dass das Erwärmen des Schutzbleches notwendig ist, um die Flügel etwas aufzuweiten - wir empfehlen das Schutzblech in heißes Wasser zu legen.
| EVO Bolt-On | EVO Zip-Tie | |
| FOX 32 | ❌ | ✅ |
| FOX 34 27.5" + 29" (2017-21) | ✅ nur bis 2020 | ✅ |
| FOX 36 27.5" + 29" (2017-21) | ✅ | ✅ |
| FOX 38 (2021) | ✅ | ✅ |
| FOX 40 26 (2017) | ❌ | ✅ |
| FOX 40 27.5" (2018-20) | ❌ | ✅ |
| FOX 49 (2021) | ❌ | ✅ |
| Marzocchi Bomber Z1 | ✅ | ✅ |
| Marzocchi Bomber Z2 | ❌ | ✅ |
| Marzocchi Bomber 58 | ✅* | ✅ |
| RockShox 27.5" + ZEB 29" | ✅ + Adapter | ✅ |
| RockShox Domain | ✅ + Adapter | ✅ |
| RockShox Recon Gold/Silver | ✅ + Adapter | ✅ |
| RockShox 35 Gold/Silver | ✅ + Adapter | ✅ |
| RockShox Lyrik | ❌ | ✅ |
| RockShox Boxxer | ❌ | ✅ |
| RockShox Pike | ❌ | ✅ |
| RockShox Revelation | ❌ | ✅ |
| Öhlins RXF36 27.5" | ✅ + Adapter | ✅ |
| Öhlins RXF 29" | ✅ + Adapter | ✅ |
| Öhlins DH38 | ✅* + Adapter | ✅ |
| DVO Onyx SC | ✅ + Adapter | ✅ |
| DVO Sapphire | ✅ + Adapter | ✅ |
| DVO Diamond | ✅ + Adapter | ✅ |
| Suntour | ❌ | ✅ |
| Cane Creek | ❌ | ✅ |
| Formula | ❌ | ✅ |
| RST | ❌ | ✅ |
| Manitou | ❌ | ✅ zusätzliche Bohrungen am Schutzblech erforderlich |
| BOS | ❌ | ✅ |
| DT Swiss | ❌ | ✅ |
| MRP | ❌ | ✅ |
| TRUST | ❌ | ✅ |
| Wren | ❌ | ✅ |
| X-Fusion | ❌ | ✅ |
Product description

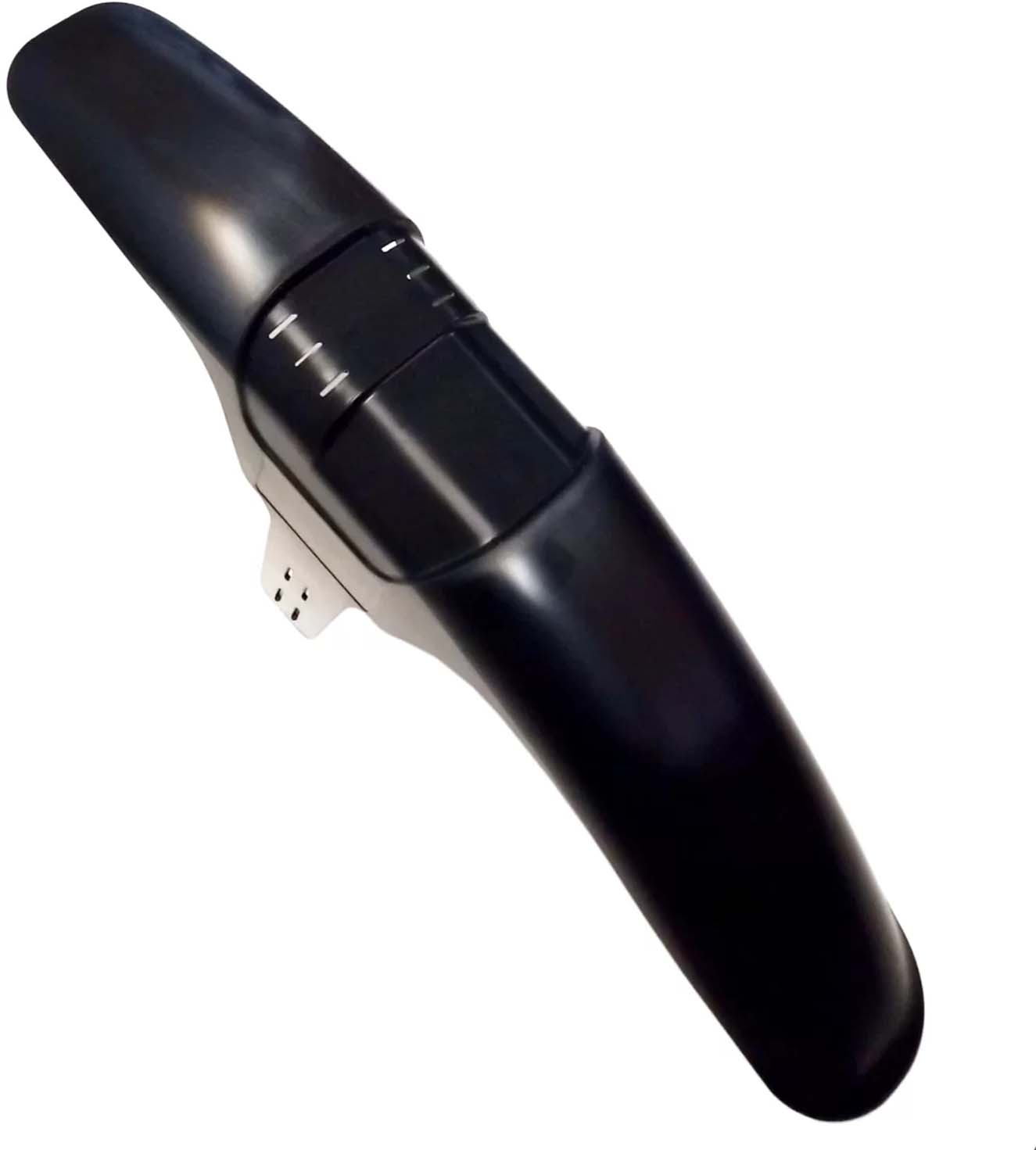

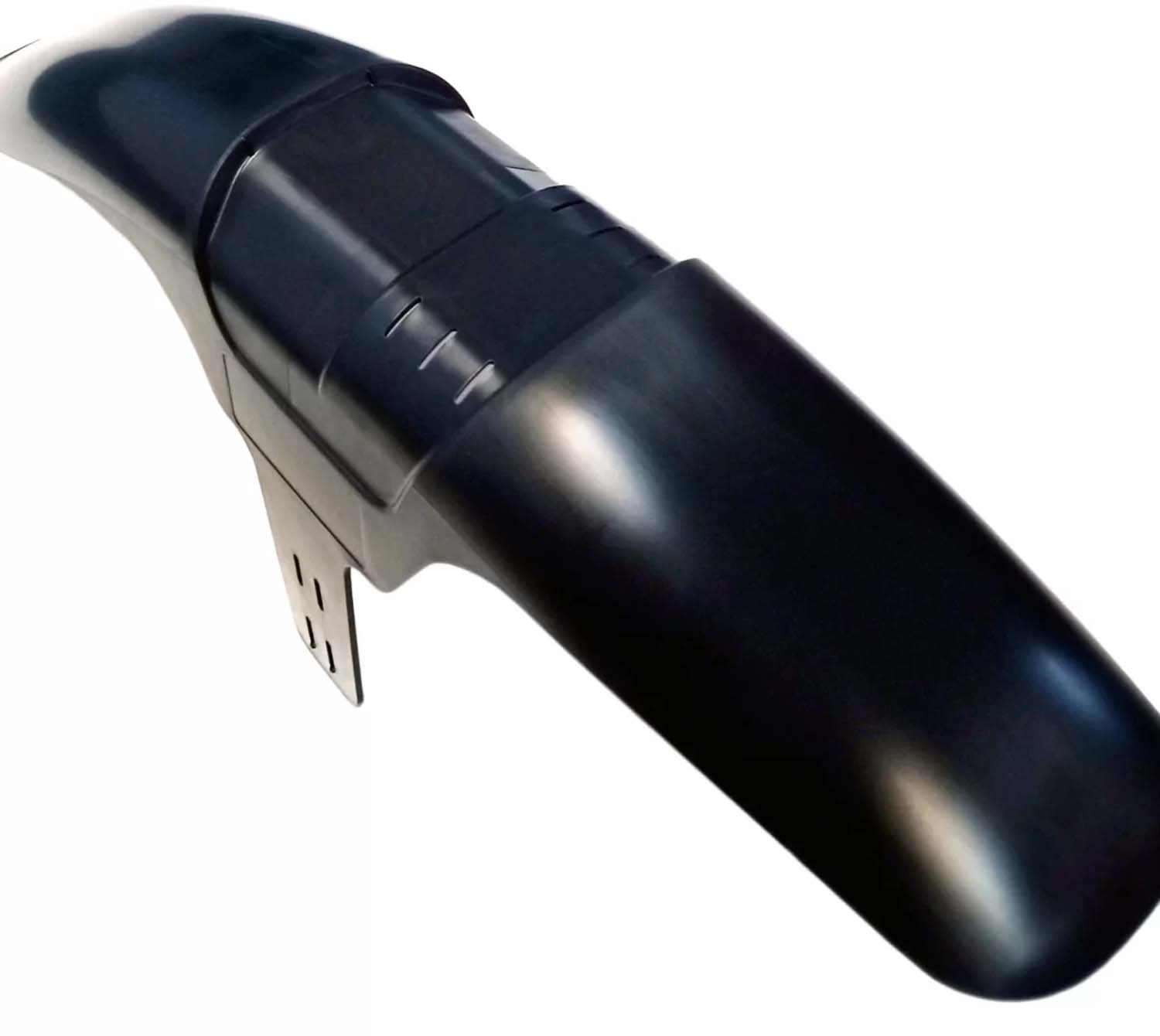

Mudhugger EVO Zip-Tie Long Vorderrad-MTB Mudguard - up to 3.0" tires, 27.5" and 29" - length: 515 mm
The Mudhugger EVO Zip-Tie was introduced in 2021 and developed with the help of riders from the DH World Cup and EWS. It was designed based on the current FOX 36/38 and RockShox ZEB models to address the problem of collision between the fender and fork crown at full compression, which many other fenders have. It is also stiffer and offers more tire clearance than the original design. It is stable enough for DH use at the highest level. The length is optimized so that the fender is only as long as necessary to ensure the best protection, a slightly indicated spoiler improves splash protection. The rear length is 330 mm, the front 185 mm.
The Mudhugger Zip-Tie is compatible with most suspension forks, but in some cases requires minor modifications. For example, to mount the EVO on a Manitou Mezza or similar models with Reverse-Arch (rear bridge), four small holes must be drilled to allow attachment to the bridge. Please note the compatibility chart and contact us in case of doubt, should the desired fork is not yet listed.
