Cube Stereo Hybrid ONE77 HPC SLX 800 desertstone n black

E-Bike Fully Mountainbike

Article no: 803310-3

Technical details

Frameset
  • Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • Size: S, M, L, XL
  • Fork: Fox 38 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 170mm

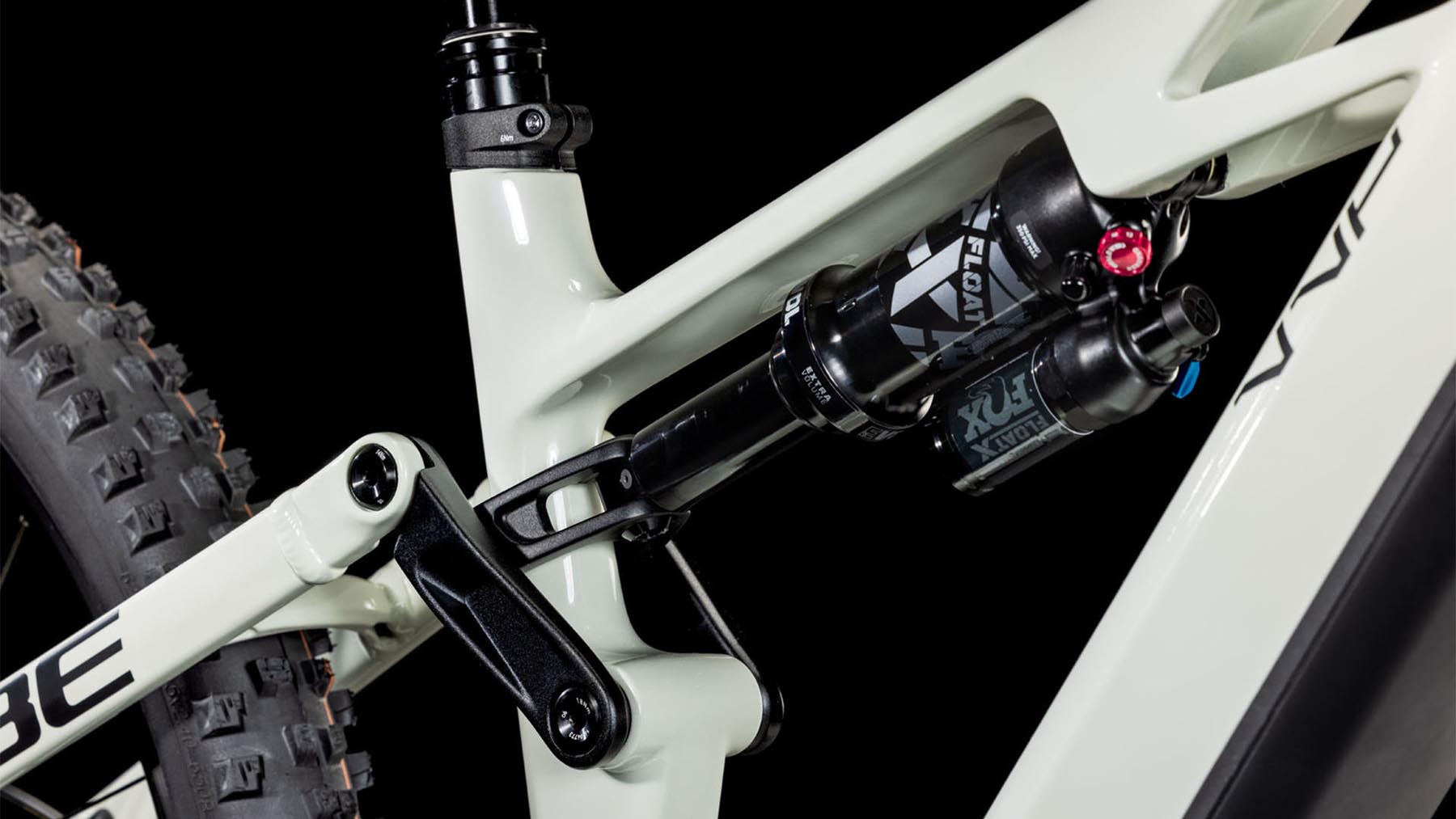

  • Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
  • Shock Hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
  • Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Equipment
  • Stem: CUBE Performance Stem E-MTB 35, FPI-Link
  • Handlebar: CUBE Rise Trail Bar 35
  • Grips: ACID Disrupt, Soft Compound
  • Saddle: ACID Venec EMTB Trail 140
  • Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Seat Post Clamp: CUBE Semi-Integrated
Drive
  • Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
  • Shifter: Shimano XT SL-M8100-IR, Direct Attach
  • Crankset: ACID MTB Hybrid Pro, 36T
  • Cassette: Shimano Deore CS-M6100, 10-51T
  • Chain: KMC e12
Brakes
  • Brakes: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Wheels
  • Wheelset: Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
  • Tire Front: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
  • Tire Rear: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
E-Bike System
  • Drive Unit: Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
  • Battery: Bosch PowerTube 800
  • Charger: Bosch 4A
  • Remote System: Bosch System Control, incl. Mini Remote
Additional Information
  • Color: desertstone´n´black
  • Weight (KG): 24,7 kg
  • Maximum weight allowed: 160 kg

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
