Cube Kathmandu Hybrid ONE 800 shadowgrey n black

Touring E-Bike Men

Article no: 812100-3

Technical details

Frameset
  • Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
  • Size: Classic: 50cm, 54cm, 58cm, 62cm
  • Fork: SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
  • Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Equipment

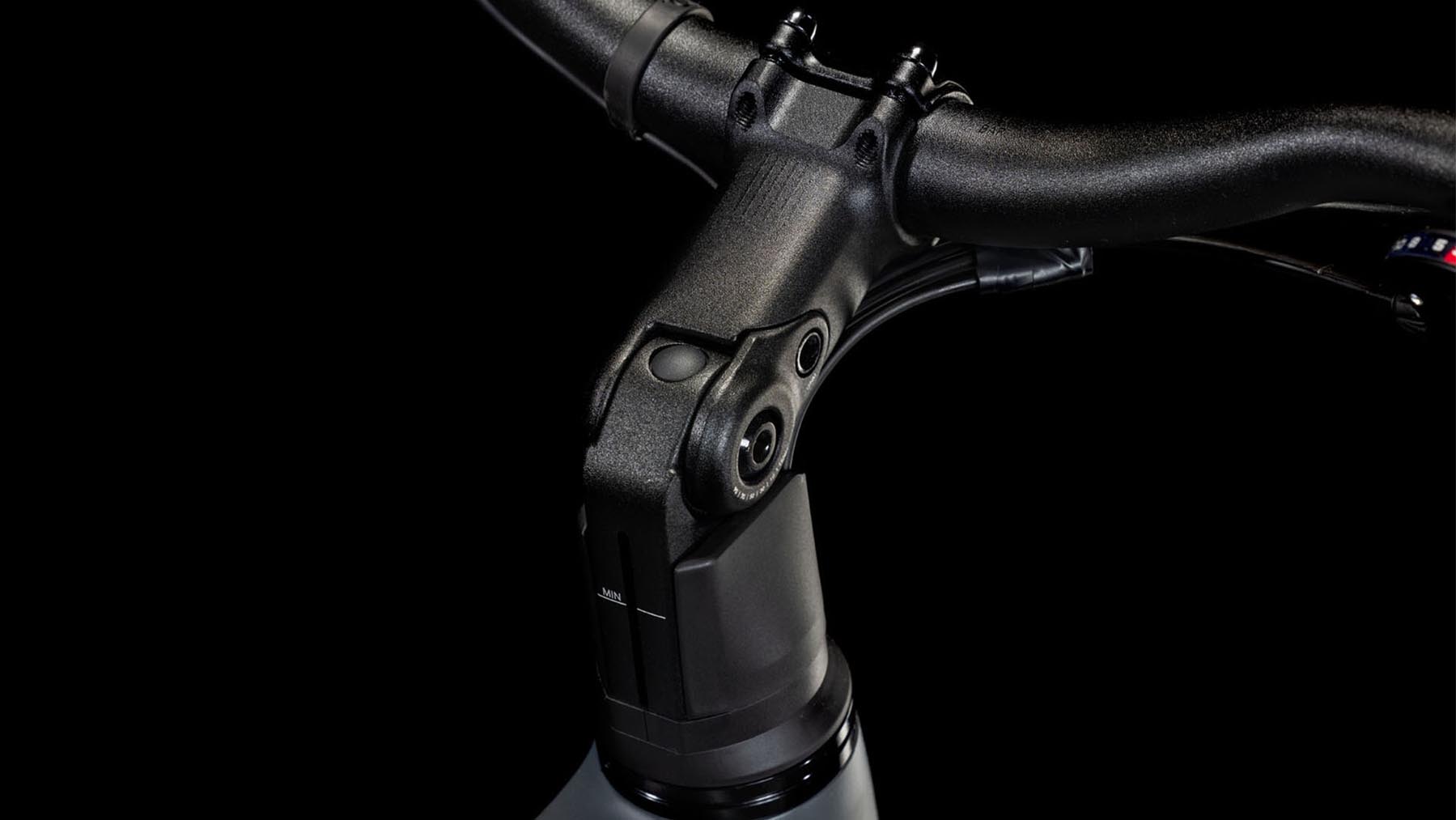

  • Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Handlebar: CUBE Comfort Trail Bar, 700mm
  • Grips: ACID Travel Comfort
  • Pedals: ACID PP MTB

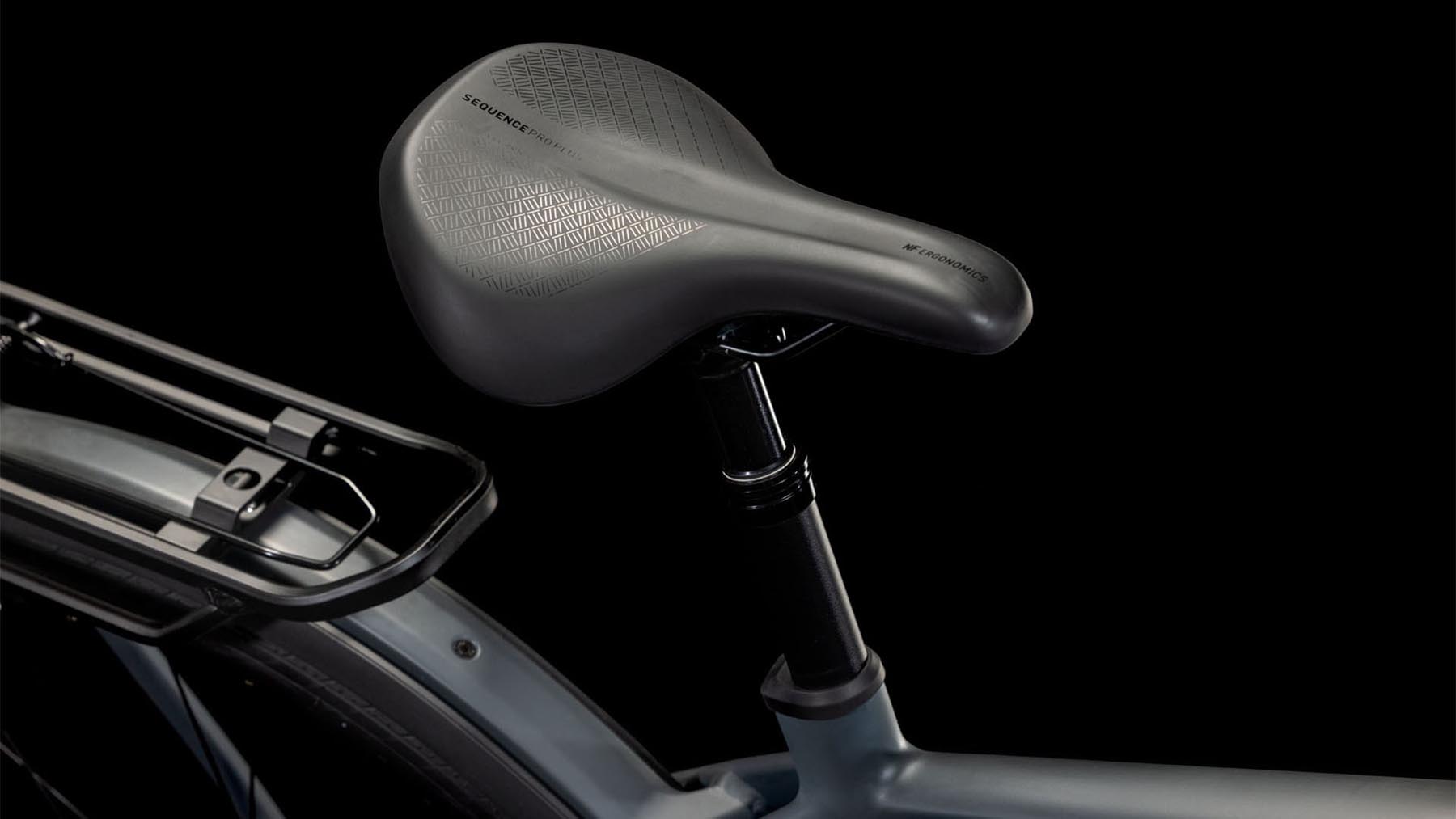

  • Saddle: ACID Sequence Pro Plus
  • Seat Post: CUBE Suspension Seatpost HD, 31.6mm

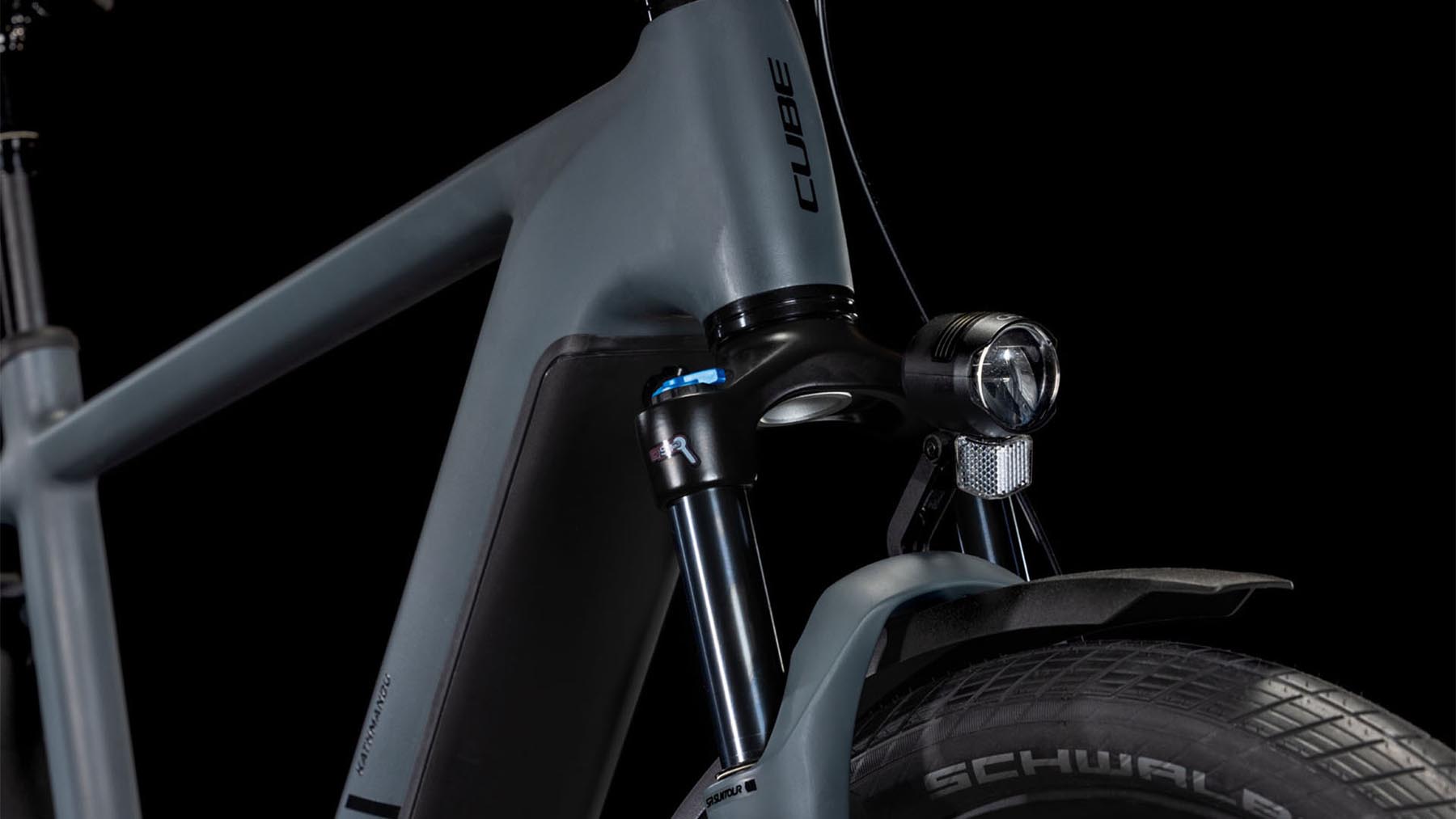

  • Front Light: ACID Front Light PRO-E 60 X-Connect, 12V, DC
  • Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand: ACID FM Pure Kickstand
  • Mudguards: ACID 65 Integrated Carrier 3.0
  • Bell: Easy Bell

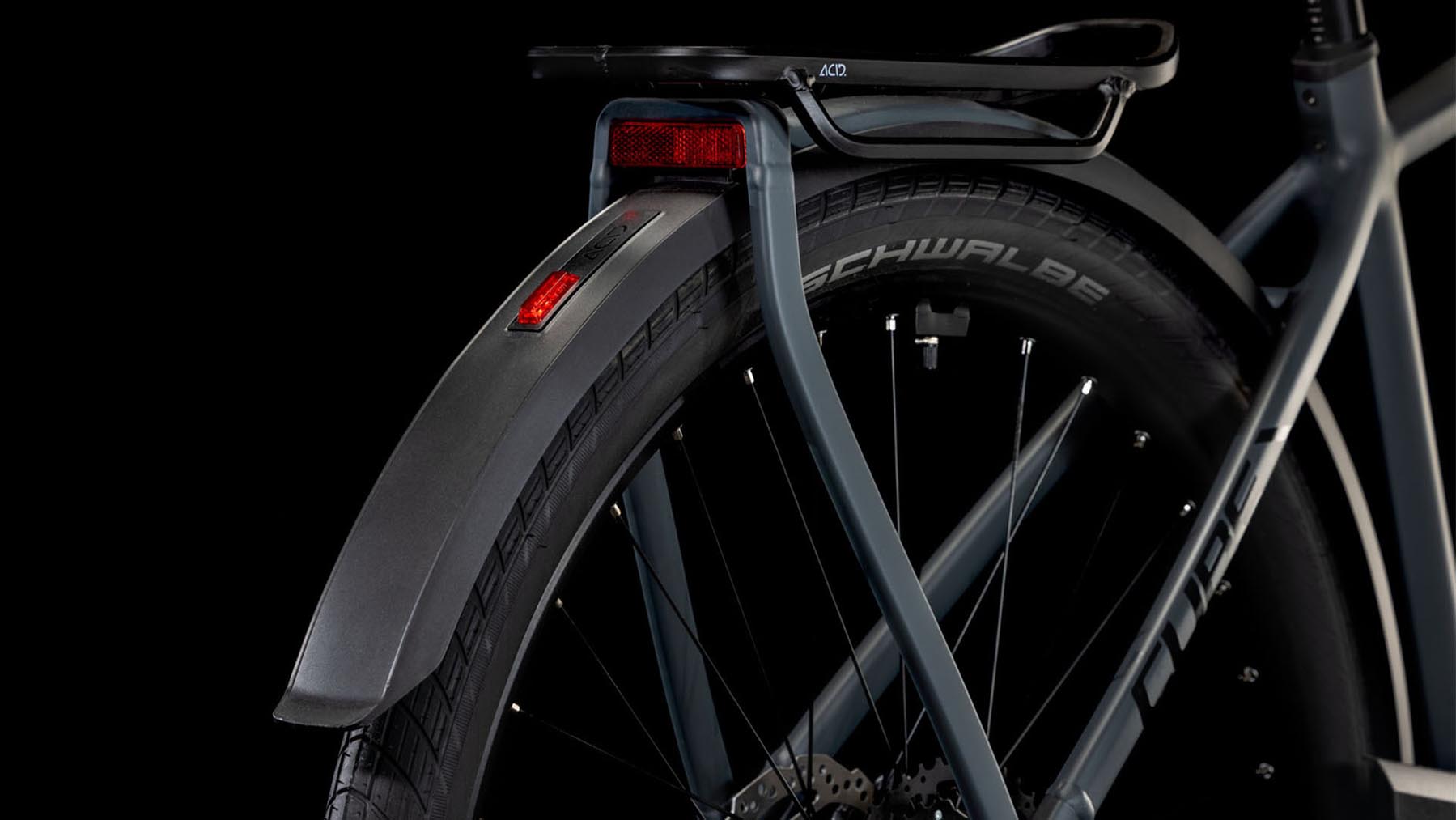

  • Rack: ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Drive
  • Rear Derailleur: Shimano Cues RD-U6000-GS, 10-Speed
  • Shifter: Shimano Cues SL-U6000, Rapidfire-Plus
  • Crankset: ACID MTB Hybrid Pro
  • Cassette: Shimano Cues CS-LG300, 11-48T
  • Chain: KMC eGlide
Brakes
  • Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
Wheels
  • Rims: CUBE EX25, 36H, Disc, Tubeless Ready
  • Hub Front: CUBE Engineered By Newmen, 15mm, Boost, Centerlock
  • Hub Rear: Shimano FH-MT400-B, 12mm, Boost, Centerlock
  • Tires: Schwalbe Big Apple, Active, 55-622
E-Bike System
  • Drive Unit: Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
  • Battery: Bosch PowerTube 800
  • Charger: Bosch 2A
  • Remote System: Bosch Purion 200 w/ Integrated Display
Additional Information
  • Color: shadowgrey´n´black
  • Weight (KG): 27,5 kg
  • Maximum weight allowed: 140 kg

Product description

Cube Kathmandu Hybrid ONE 800 shadowgrey n black - Touring E-Bike Men

Cube Kathmandu Hybrid - your perfect trekking e-bike for adventure and everyday use

The Cube Kathmandu Hybrid ONE 800 combines innovative technology, comfort and durability in a modern trekking e-bike. Particularly noteworthy is the high-quality frame, which makes this model the first choice for demanding riders.

Aluminum frame from Cube - stability and comfort combined

The aluminum Superlite frame with Gravity Casting Technology and Efficient Comfort Geometry was specially developed for long tours and daily use. The fully integrated battery ensures a slim design and optimum protection, while the Boost148 axle guarantees maximum stability. With the Integrated Carrier 3.0, the frame offers versatile luggage options - ideal for traveling or commuting to the office.

Available in four sizes (50 cm, 54 cm, 58 cm, 62 cm), the Kathmandu Hybrid ONE adapts perfectly to your needs.

Bosch Performance CX motor - power and efficiency for your trekking e-bike

Equipped with the Bosch Performance Line CX motor, the bike delivers a powerful 85 Nm of torque, while the Bosch PowerTube 800 battery offers sufficient range for long rides. Thanks to the Bosch Purion 200 display with integrated remote system, you can keep an eye on all the important information.

Shimano Gears and high-quality equipment for a comfortable ride

This trekking bike offers well thought-out details for an incomparable riding experience:

  • Shimano Cues 10-speed drivetrain for precise and easy shifting, even in demanding conditions.
  • SR Suntour NX1-32 LO Air suspension fork with 100 mm travel for comfort on rough terrain.
  • Ergonomic CUBE Comfort components such as an adjustable stem and suspension seatpost.

Safety and reliability with Shimano brakes

Hydraulic disc brakes from Shimano BR-MT200 offer reliable braking performance even in wet conditions. The Schwalbe Big Apple tires ensure safe grip and comfortable handling. In addition, the ACID front and rear lights increase your visibility at any time of day.

Trekking e-bike Cube Kathmandu - your reliable companion

Whether for long tours, everyday use or sporty rides - the Cube Kathmandu Hybrid ONE 800 is the perfect choice for anyone looking for a powerful and well thought-out trekking e-bike. The outstanding frame guarantees a safe and comfortable riding experience in every situation.

[deeplNEW]

Who is the Kathmandu Hybrid ONE 800 suitable for?

For the experienced bike tourist. Some tours you put together in your head, but you can't cope with them in reality. With the high-performance bikes from this category, no way is too far and no ascent too steep. Extraordinary components and maximum comfort allow for routes that could previously only be mastered by car. With the bikes from this offer a package that leaves nothing to be desired for years to come and is future-proof as well as environmentally friendly.

Battery capacity: 800Wh
Bike Type: E-Bike, Trekking Bike
Display Type: Bosch Purion 200
E-Bike Engine: Bosch Performance CX
Fahrradpedale: Mit Pedale
Frame shape: Diamond
Model year: 2025
Target Group: Men

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
