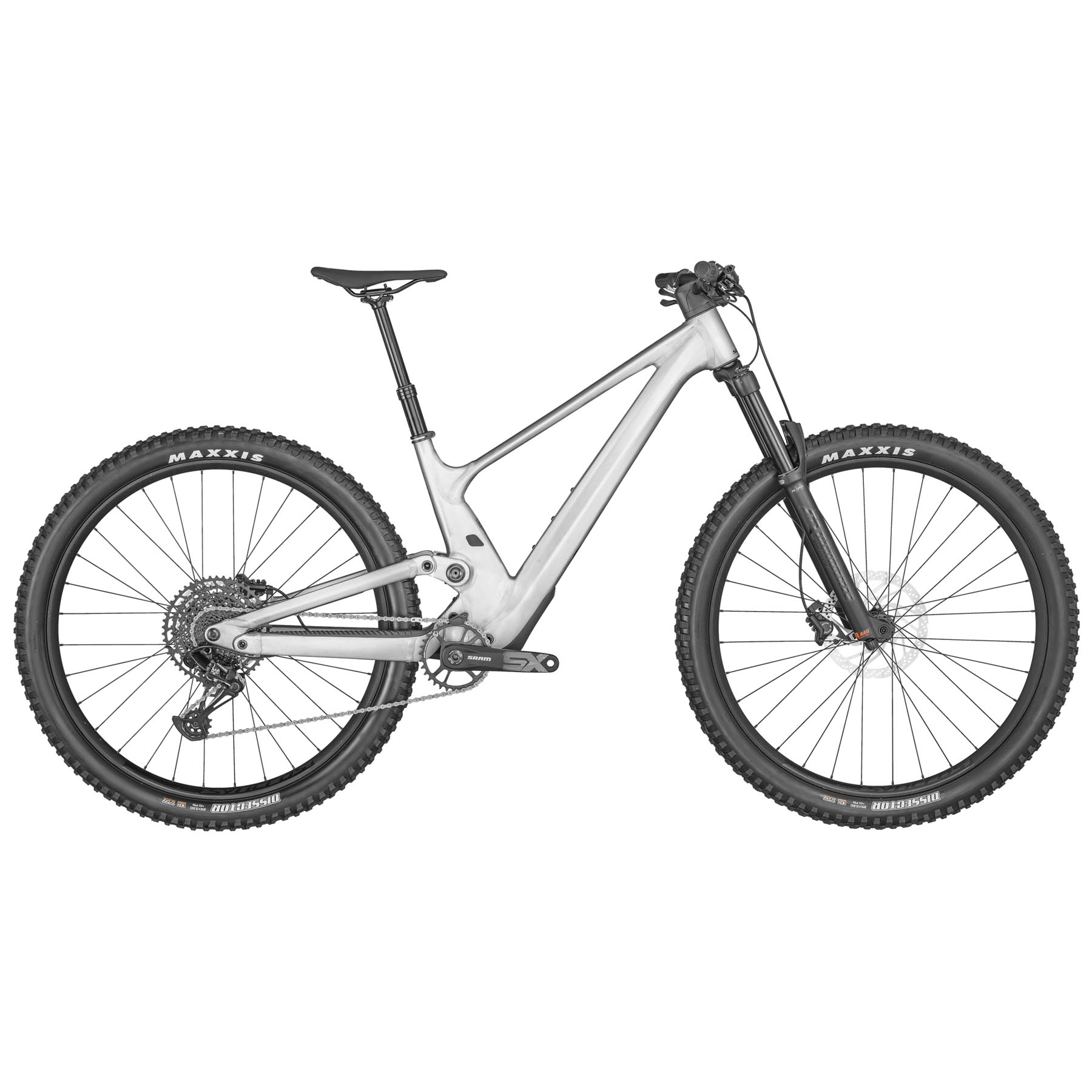

Scott Genius 940 Raw Alloy

Fully Mountainbike

Article no: 290147012

Technical details

Frameset
  • Frame: Genius Alloy 6061, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline
  • Fork: Marzocchi Z2 Air Rail, 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 150mm travel
  • Shock: X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 150-100-Lockout / T185X55mm
  • Headset: Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Drive
  • Rear Derailleur: SRAM NX Eagle 12 Speed
  • Shifter: SRAM SX Eagle Trigger
  • Number of gears: 12
  • Crankset: SRAM SX Eagle DUB, 55mm CL / 32T
  • Bottom Bracket: SRAM DUB PF 92 MTB Wide / shell 41x92mm
  • Chain: SRAM CN SX Eagle
  • Cassette: SRAM SX-PG1210 / 11-50 T
Brakes
  • Brake (front): Shimano MT501 Disc
  • Brake (rear): Shimano MT501 Disc
  • Brake Discs : Front: Shimano SM-RT30 CL / 203 mm | Rear: Shimano SM-RT30 CL / 180 mm
Wheels
  • Front rim: Syncros X-30S / 32H / 30mm / Sleeve Joint
  • Rim rear: Syncros X-30S / 32H / 30mm / Sleeve Joint
  • Tires: Front: Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO | Rear: Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO
  • Hub Front: Formula CL-811 / 15x110mm
  • Hub Rear: Formula CL-148S / 12x148mm
  • Spokes: Stainless Black 15G / 1.8mm
Equipment
  • Handlebar: Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 8° / 780mm
  • Handlebar Remote: SCOTT TwinLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes
  • Handlebar width: 780
  • Stem: Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
  • Stem length: 40
  • Grips: Syncros Endurance lock-on grips
  • Saddle: Syncros Tofino 2.5 Regular
  • Seat Post: Syncros Duncan Dropper Post, 31.6mm / S size 130mm / M size 150mm / L & XLsize 170mm
Additional Information
  • Weight (KG): 15,8
  • Maximum weight allowed: 128

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
