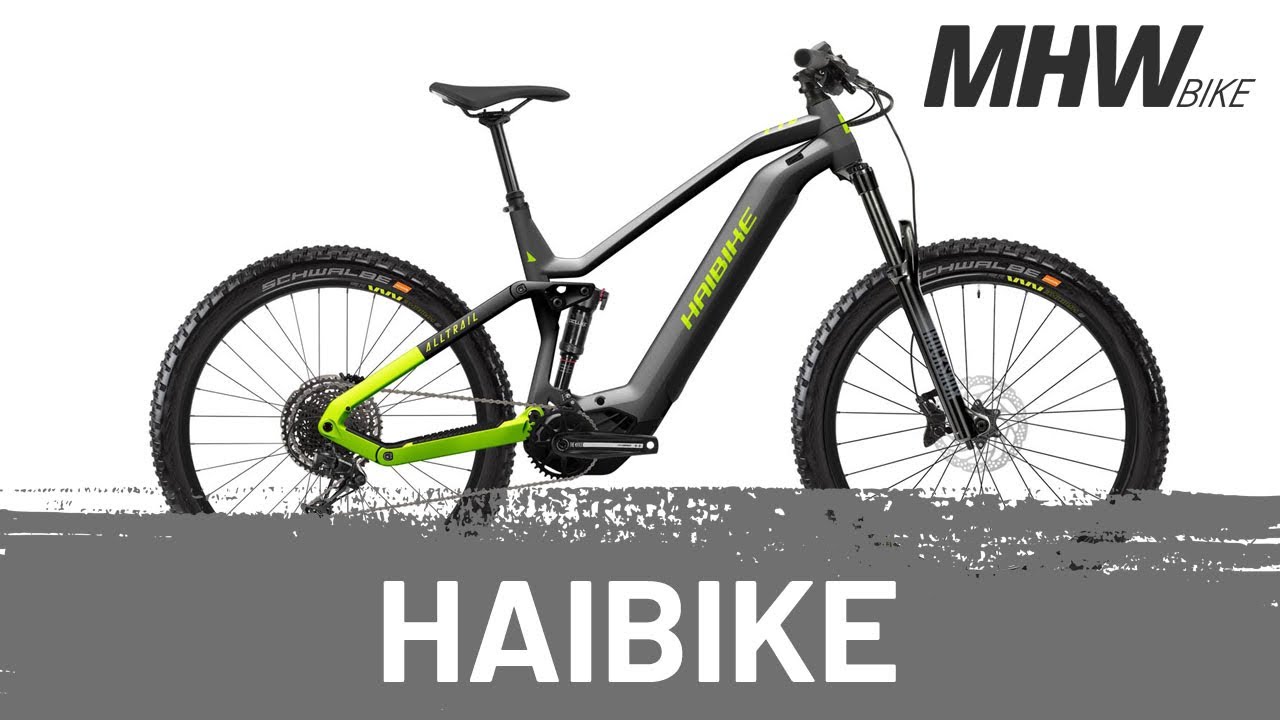

Haibike AllTrail 9 titan / lime / black matt

E-Bike Fully Mountainbike

Article no: 45212450

Technical details

Frameset
  • Frame: Aluminium, Steckachse M12 (1.00) x 148mm, Scheibenbremse Post Mount, Federweg: 140mm
  • Fork: RockShox 35 Gold RL, Luft, Federweg: 140mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm Steckachse Boost
  • Shock: RockShox Deluxe Select Plus, Luft
  • Headset: Acros BlockLock
Drive
  • Rear Derailleur: Sram NX Eagle, 12-Gang
  • Shifter: Sram NX Eagle Single Click, Triggerschalter
  • Cassette: Sram PG1210, 11-50 Zähne
  • Chain: Sram SX Eagle
  • Chainring: Sram X-Sync 2, 38
  • Chain Guide: Nylon directmount
Brakes
  • Brake Lever: Magura MT5 HC-Hebel, Aluminium
  • Brakes: Magura MT5, 203mm
Wheels
  • Tires: Schwalbe Magic Mary Evo TLE, 65-622 / Schwalbe Hans Dampf Evo TLE, 65-584
  • Wheel Size: Front: 29" / Rear: 27.5"
  • Rims: WTB ST i30 TCS, Hohlkammerfelge / WTB ST i35 TCS, Hohlkammerfelge
  • Hub Front: Shimano MT400-B
  • Hub Rear: Shimano MT400-B
  • Spokes: Sapim Race
Equipment
  • Handlebar: Haibike Components TheBar ++ 780mm
  • Grips: Haibike MTB Griffe
  • Stem: Alu, A-Head, Bar bore: 31.8mm
  • Saddle: Selle Royal Vivo
  • Seat Post: Dropper-Post Remote, Teleskop, 34.9mm, Aluminium
  • Pedals: Freeridepedal Aluminium, mit Reflektor
E-Bike System
  • Drive Unit: Yamaha PW-X3, 250W, 85Nm, 25km/h
  • Display: Yamaha Side Switch
  • Battery: InTube, 720 Wh
  • Charger: Schnellladegerät 4A
Additional Information
  • Maximum weight allowed: 150 kg

Product description

Haibike AllTrail 9 titan / lime / black matt - E-Bike Fully Mountainbike

Who is the AllTrail 9 suitable for?

For the competition-oriented driver who makes no compromises. Where others are saving money, these bikes are using their full potential. If you used to have to put together your own fully complicated bike, these BIkes will deliver the complete package perfectly matched to your home. Manoeuvrable, light and flexible in use - bikes for every occasion, the winner's podium, the Alpenpass and all those who look forward to hairpin bends!

The advantages of 27.5 inch tires

27.5 inch wheels are the logical addition to the large 29 inch wheels and the optimum compromise for all smaller riders and trail fanatics. The combination of smoothness and manoeuvrability meets every wish of a biker. More agile than the 29 inch wheels and therefore the optimal choice for off-road driving and hairpin bends that leave you with little reaction time. This category offers the best choice especially for those changing from 26 inch wheels. 27.5 inch combines the best of two worlds and creates bikes that are not restricted in their use. Whether Fully or Hardtail - 27.5 inch is the golden mean and the perfect tyre size for all who want to use their mountain bike according to its purpose.

The advantages of 29 inch tires

29 inch is THE trend of the last few years, which was able to assert itself completely. Initially viewed critically by mountain bike purists and equipped with some teething troubles, the bike industry has recognized the trend and made it the new standard through continuous improvements. The advantage of the 29" tyres is the enormous running smoothness, which brings great advantages and saves power on long tours as well as uphill and downhill. Obstacles are easier to overcome due to the larger circumference of the wheels, and a greater distance is covered by turning the bottom bracket. By improvements and adjustments in the frame construction and the component selection, initial problems with the agility in the Trail and the optics of smaller frames were optimally balanced. Whether fully or hardtail, a 29 will take you far away.

Battery capacity: 720Wh
Bike Type: E-Bike, Mountainbike Fully
Display Type: Yamaha Display A
E-Bike Engine: Yamaha PW-X3
Material: Aluminum
Model year: 2024
Target Group: Men, Unisex, Women
Wheel Size: 27,5 inch, 29 inch

Incidentally, your bike is delivered completely pre-assembled. All you have to do is put on the front wheel, adjust the handlebars and fit the pedals. It's very simple.

Info: Unless otherwise described, this item will be delivered by a forwarding agent “free kerbside”, i.e. to the public kerbside nearest to the delivery address.
