Technical Specification
- Total length: 515 mm
- Rear extension: 330 mm
- Front extension: 185 mm
- Width: 90 mm
- Material: Recycled polypropylene
- Weight: 125 g
- Scope of delivery: mudguard, 2x screw and washer, 2x rubber bumpers, 1x shim for angle adjustment
Mudhugger EVO compatibility chart
This overview should help to find the right EVO fender, suitable for the suspension fork. Some fork models require for mounting additional parts or minor modifications to the fender, so that this fits.
Please note
: Minimum fork pre-bend (offset) for all EVO mudguards: 44 mm
â - means not compatible.
â - means compatible, please see additional notes.
â * - means that heating the fender is necessary to expand the wings slightly - we recommend to put the fender in hot water.
EVO Bolt-On | EVO Zip-Tie | FOX 32 | â | â |
FOX 34 27.5" + 29" (2017-21) | â only until 2020 | â |
FOX 36 27.5" + 29" (2017-21) | â | â |
FOX 38 (2021) | â | â |
FOX 40 26 (2017) | â | â |
FOX 40 27.5" (2018-20) | â | â |
FOX 49 (2021) | â | â |
Marzocchi Bomber Z1 | â | â |
Marzocchi Bomber Z2 | â | â |
Marzocchi Bomber 58 | â * | â |
RockShox 27.5" + ZEB 29 | â + adapter | â |
RockShox Domain | â + adapter | â |
RockShox Recon Gold/Silver | â + Adapter | â |
RockShox 35 Gold/Silver | â + adapter | â |
RockShox Lyrik | â | â |
RockShox Boxxer | â | â |
RockShox Pike | â | â |
RockShox Revelation | â | â |
Ãhlins RXF36 27.5" | â + adapter | â |
Ãhlins RXF 29" | â + adapter | â |
Ãhlins DH38 | â * + adapter | â |
DVO Onyx SC | â + adapter | â |
DVO Sapphire | â + adapter | â |
DVO Diamond | â + adapter | â |
Suntour | â | â |
Cane Creek | â | â |
Formula | â | â |
RST | â | â |
Manitou | â | â additional holes required on the fender |
BOS | â | â |
DT Swiss | â | â |
MRP | â | â |
TRUST | â | â |
Wren | â | â |
X-Fusion | â | â |
Product description

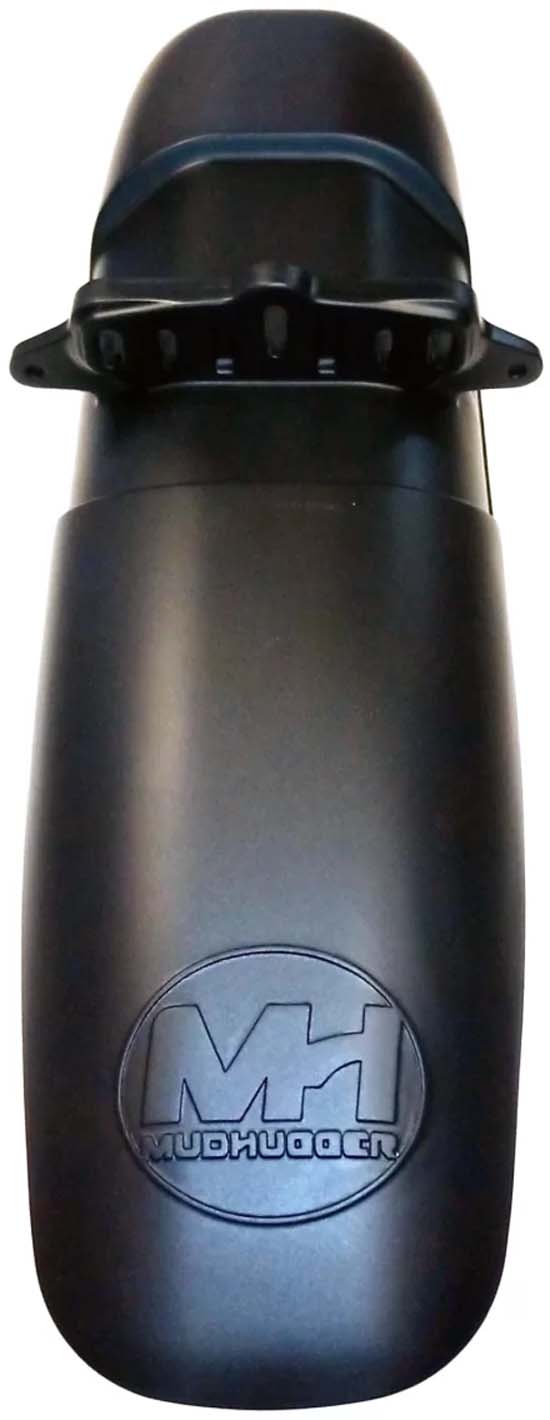

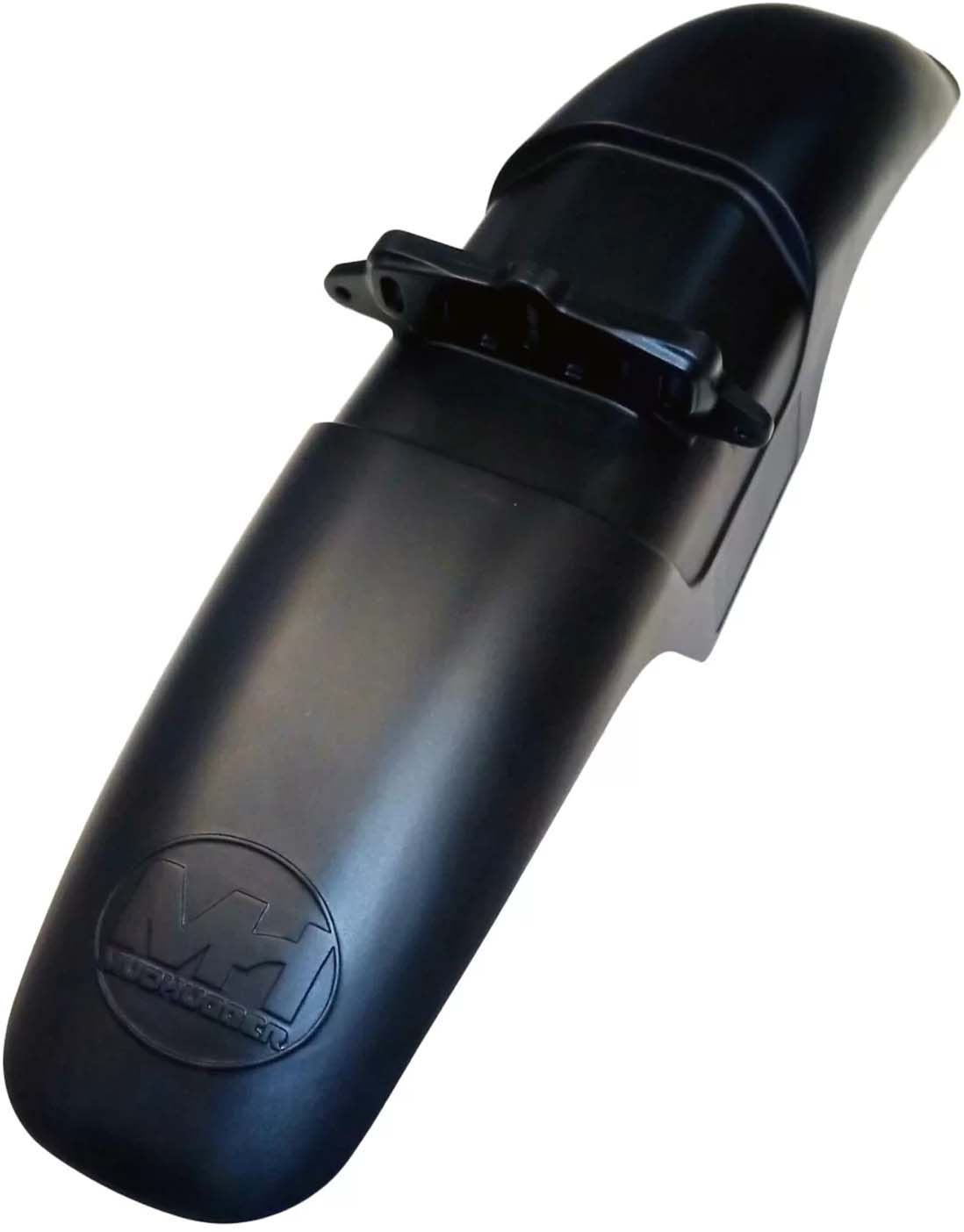

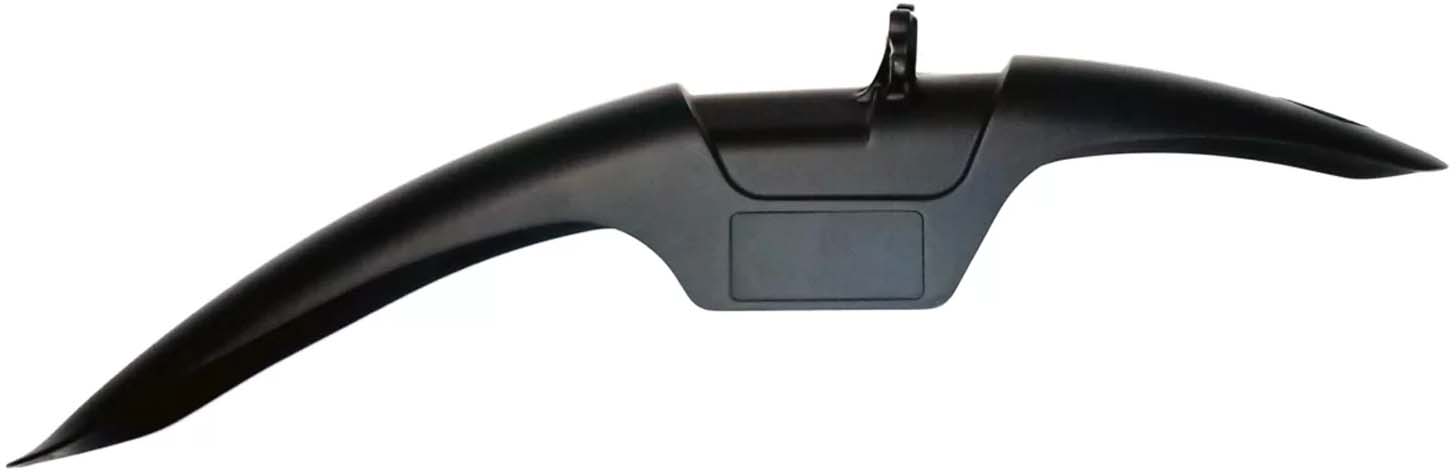

Mudhugger EVO Bolt-On Long Vorderrad-MTB Mudguard - up to 3.0" tires, 27.5" and 29" - Length: 515 mm
The Mudhugger EVO Bolt-On was introduced in 2021 and developed with the help of riders from the DH World Cup and EWS. It was designed based on the current FOX 36/38 and RockShox ZEB models to address the problem of collision between the fender and fork crown at full compression, which many other fenders have. It is also stiffer and provides more tire clearance than the original design. The length is optimized so that the fender is only as long as necessary to ensure the best protection, a slightly implied spoiler improves splash protection. The rear length is 330 mm, the front 185 mm.
The Mudhugger EVO Bolt-On is compatible with many fork models, but sometimes requires additional adapters. Please note the compatibility chart and contact us in case of doubt, the desired fork is not yet listed. If there are no threads on the fork crown, the EVO Zip-Tie version must be used.
Note: This text has been translated automatically.
